Building a digital consent form

Module 2

Let’s Do Digital Team

Lesson 2 - Let’s build a digital consent app

Eager to get started?

• Don’t worry, we will get you coding soon.
• However, it is probably a good idea to make sure you are familiar with all of the concepts you need to build a digital consent form.

So what are we going to build exactly?

• A web based digital healthcare app.
• This needs both a frontend and a backend.
  • Frontend - what you see and interact with.
  • Backend - the brains (in most cases) and data storage of your app.

What is a web browser?

• You highly likely use these every day (Explorer, Chrome, Safari).
• A web browser is a software program that allows a user to locate, access, display and interact with a web page.
• The main languages used in creating the “raw” webpage are HTML and javascript.
• You can use frameworks in other languages to then create these “raw” webpages. In our case a python framework called streamlit.

We are going to cheat

• As we do not have time to build both the front and backend, we have created a cloud database (specifically suprbase) for you to connect to.
• The “brains” and frontend delivery will be managed by the streamlit server that you will be building.
• A server is basically a computer program that provides you with a web page.

What is a library?

• You will be using different libraries in this build.
• A library is basically a collection of code that provides set functionality.
• You need to first install libraries and then import to use them.
• See module 1 for an overview.

What is an API?

• An application process interface (API) is a means for computer programs to communicate with each other.
• These communicating programs can be on the same computer, over networks or even the internet.
• You will be using the supabase python library to connect to the supabase database via its API.

Data in a database

• Much like a spreadsheet, data is stored in a database in tables.
• You query tables in the database to get data.
• Queries in streamlit return all data from a table.
• You can then use standard python data manipulation to retrieve the data you need.

State

• State in a web app is basically the current values of variables being used.
• Will we cover this shortly and how to read and alter state in Streamlit.

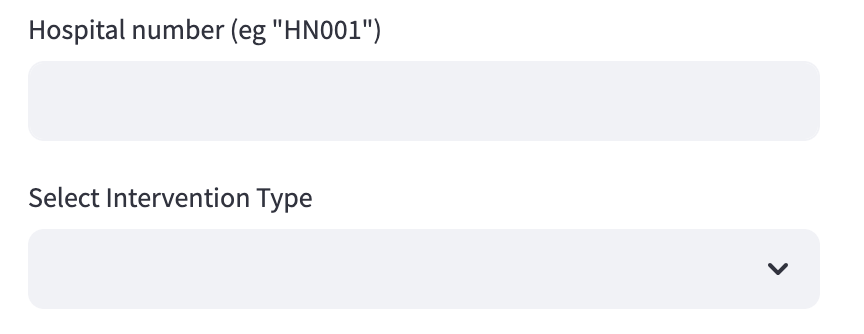

Fields

• A field on a web page is an element that you can interact with and input data.
• Common types of fields include text boxes, radio buttons, checkboxes, dropdown menus, and buttons.
• Fields are typically used in forms to collect user input.

Fields - some key facts

• There are many different attributes that you can alter for each field on a webpage. These include:
  • labels - the label you see on the web page.
  • keys - how you reference a field in code.
  • on_change - a function to run when the value of a field changes.

Web Page Forms

• A form on a web page is a structured area that contains fields for users to input and submit data.
• Forms are used to collect user input and can include various types of fields.
• The data entered into a form can be sent to a server for processing, often by pressing a submit button.

Python specific concepts

Anatomy of a function

functions.py

def name_of_function(argument_1, argument_2):

    print(argument_1 + argument_2)

    return "Finished"

Scope

• In most programming languages, a variable has scope.
• Scope defines where a variable can be read and altered.
• Scope is determined by where a variable was originally defined.

Scope example

scope.py

def patient_info():
    patient_name = "Alice Smith"
    print(f"Patient Name: {patient_name}")

patient_info()
print(patient_name)

Output

    Patient Name: Alice Smith
    Traceback (most recent call last):
        File "/scope.py", line 6, in <module>
            print(patient_name)
                  ^^^^^^^^^^^^
    NameError: name 'patient_name' is not defined.

Bad practice

• You can use the global keyword to get variables into scope, but this is bad practice and best avoided.

Good practice

• Instead, pass all the variables you need to classes and functions as arguments.
• This also makes it much easier to problem solve and test your code later.

Negative indexing

• If you want to get the last element in a list, just use -1

negative_indexing.py

patients = ["Alice", "Bob", "Charlie", "David"]

# Get the last patient in the list using negative indexing
last_patient = patients[-1]

print("The last patient is:", last_patient)

Output

    The last patient is: David

List comprehension

• A quick way to build new lists from other lists or even dictionaries.
• Can take some time to get used to using these.

  [new_element for item in iterable if condition]

List comprehension

list_comprehension.py

temperatures = [36.5, 37.0, 38.5, 39.0, 37.8, 36.8, 39.5]

high_temperatures = [temp for temp in temperatures if temp > 38]

print(high_temperatures)

Output

    [38.5, 39.0, 39.5]

List comprehension - dictionaries

list_comprehension.py

patients = [
        {"name": "Alice", "hospital_number": "H123", "age": 25},
        {"name": "Bob", "hospital_number": "H124", "age": 17},
    ]

names = [
    patient["name"]
    for patient in patients
    if patient["age"] > 18
]

print(names)

Output

    Alice

Convert to list

• Sometimes you need to convert keys of a dictionary to a list:

list_function.py

patients = [
        {"name": "Alice", "hospital_number": "H123", "age": 25},
        {"name": "Bob", "hospital_number": "H124", "age": 17},
    ]

print(list(patients.keys()))

Output

    ['name', 'hospital_number', 'age']

I want it all

• The all() function returns true if all elements in a list pass a certain test.

  all(condition for item in iterable)

I want it all

all.py

patients = [
    {"name": "Alice", "age": 25, "hospital_number": "H123"},
    {"name": "James", "age": 18, "hospital_number": "H124"},
]

all_adults = all(patient["age"] >= 18 for patient in patients)

print(all_adults)

Output

    True

I want all values

all.py

fields = {"HIV": "negative", "Hepatis B": "negative"}
if all(field != "" for field in fields.values()):
    st.write("ok")

OUTPUT

    ok

Lambda

• We can use lambda to return a reference to a function rather than directly calling the function.
• It is useful when you want to pass a function with its own arguments as an argument to another function.

lambda.py

function_a(function_to_call=lambda:function_b(arg_1, arg_2))

Streamlit

Streamlit

• As said, we will be using a python web app framework called Streamlit for the frontend.
• Frameworks are a superset of libraries.
• Frameworks are great, as someone else has done most of the heavy coding to make it easier for you to carry out a task (in this case building a web app).

Module import

Direct import

libraries_1.py

import streamlit

or as an alias

libraries_2.py

import streamlit as st

Who is running what?

main.py

if __name__ == "__main__":
    main()

• Checks if the current file is being run as an imported library or directly.

Streamlit methods

streamlit_methods.py

import streamlit as st

# A title for the page
st.title("My first web app")

# Writes text to the browser
st.write("Text to write to browser")

# Text input field with key and on_change function
# "key_1" is stored as a key in the session state (described later)
st.text_input("label", key="key_1", on_change=lambda:on_change_function())

# Or, assign the input field results to a variable
hospital_number = st.text_input("Hospital number", "0", disabled=False)

Streamlit methods

streamlit_methods.py

import streamlit as st

# Creates a select box. Uses lists for selection choices
st.selectbox("Label for selectbox", ["first choice","second choice"])

# Create a date field
date_of_birth = st.date_input("Date of birth", None)

# Create a simple button
st.button("Press to refresh the page")

Streamlit methods

streamlit_methods.py

import streamlit as st

# Create a header (basically larger text)
st.header("A header")

# Show an error message
st.error("I am an error message")

Streamlit methods - forms

streamlit_methods.py

import streamlit as st

# Create a form
with st.form("name_of_form")
    # As many fields as you like, eg
    st.text_input("First name")

    submitted = st.form_submit_button("Submit")

    if submitted:
        st.write("Button pressed")

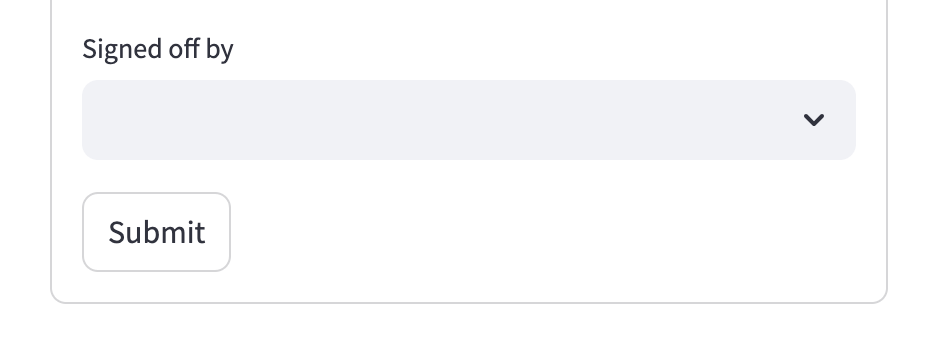

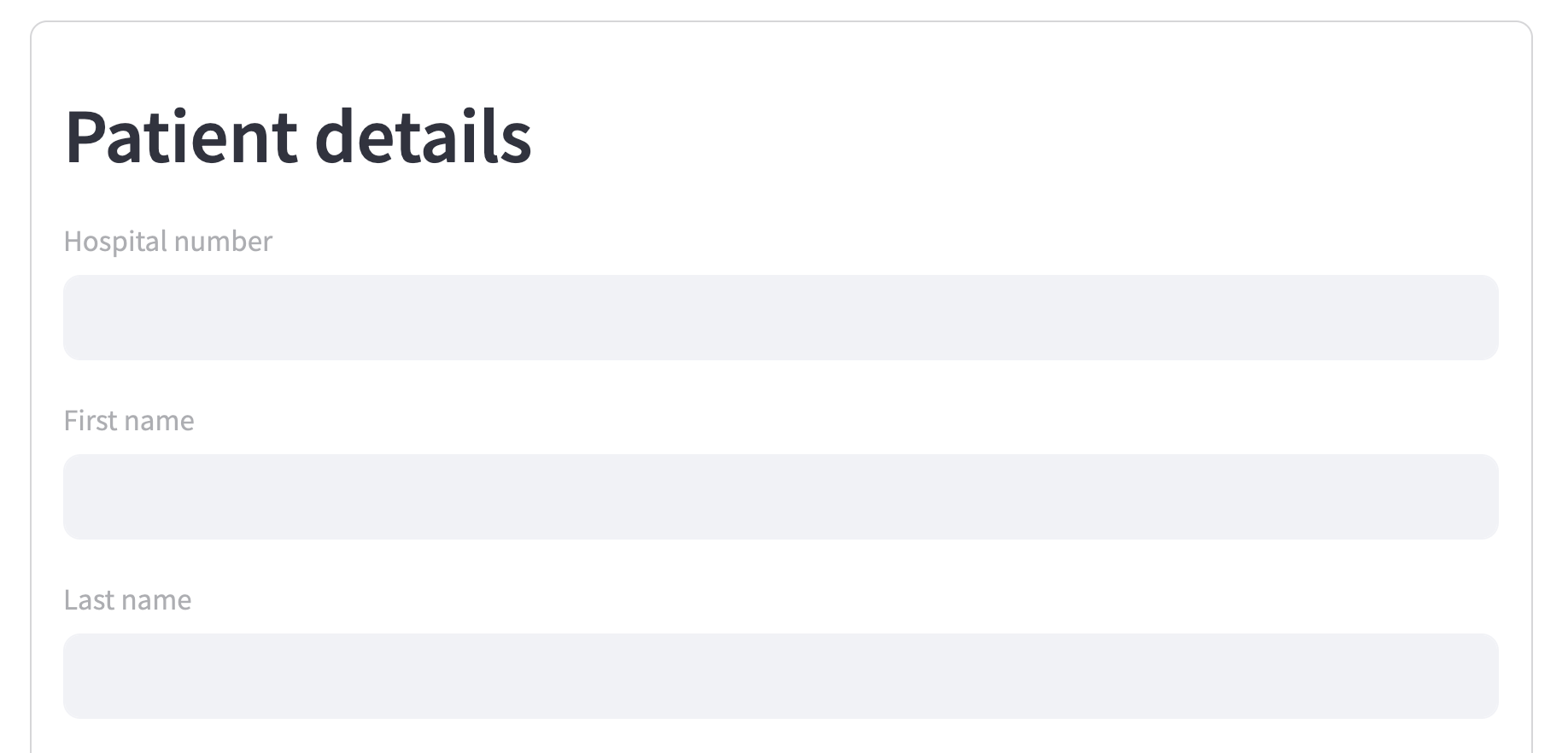

Streamlit methods - forms

• Note the curved border around Streamlit forms.

Streamlit methods - change page

streamlit_methods.py

import streamlit as st

# Redirect to another page
st.switch_page("pages/another_page.py")

Session state

streamlit_session_state.py

import streamlit as st

# Set the session state
st.session_state.a_variable_name = "a_value"

# Clear all of the session variables
for key in list(st.session_state.keys()):
    del st.session_state[key]

magicEnabled = false

• We have turned off a feature in Streamlit that shows all of your code in the browser using:

.streamlit/config.toml

[runner]
magicEnabled = false

Otherwise, the browser will be a little messy with all of your code visible.

(See .streamlit/config.toml file if interested)

Stopping a running program

CTRL - C

or

CMD - C

Nuances of Streamlit

• When you update code and save, click Always rerun (top right) in the browser to automatically refresh on code change.
• Sometimes you need to manually refresh the browser or even restart Streamlit to get certain codes changes to work (likely due to some error in the code).
• Streamlit.io reruns the whole script whenever you interact with the browser (eg click something, select something, type something, or press a button).

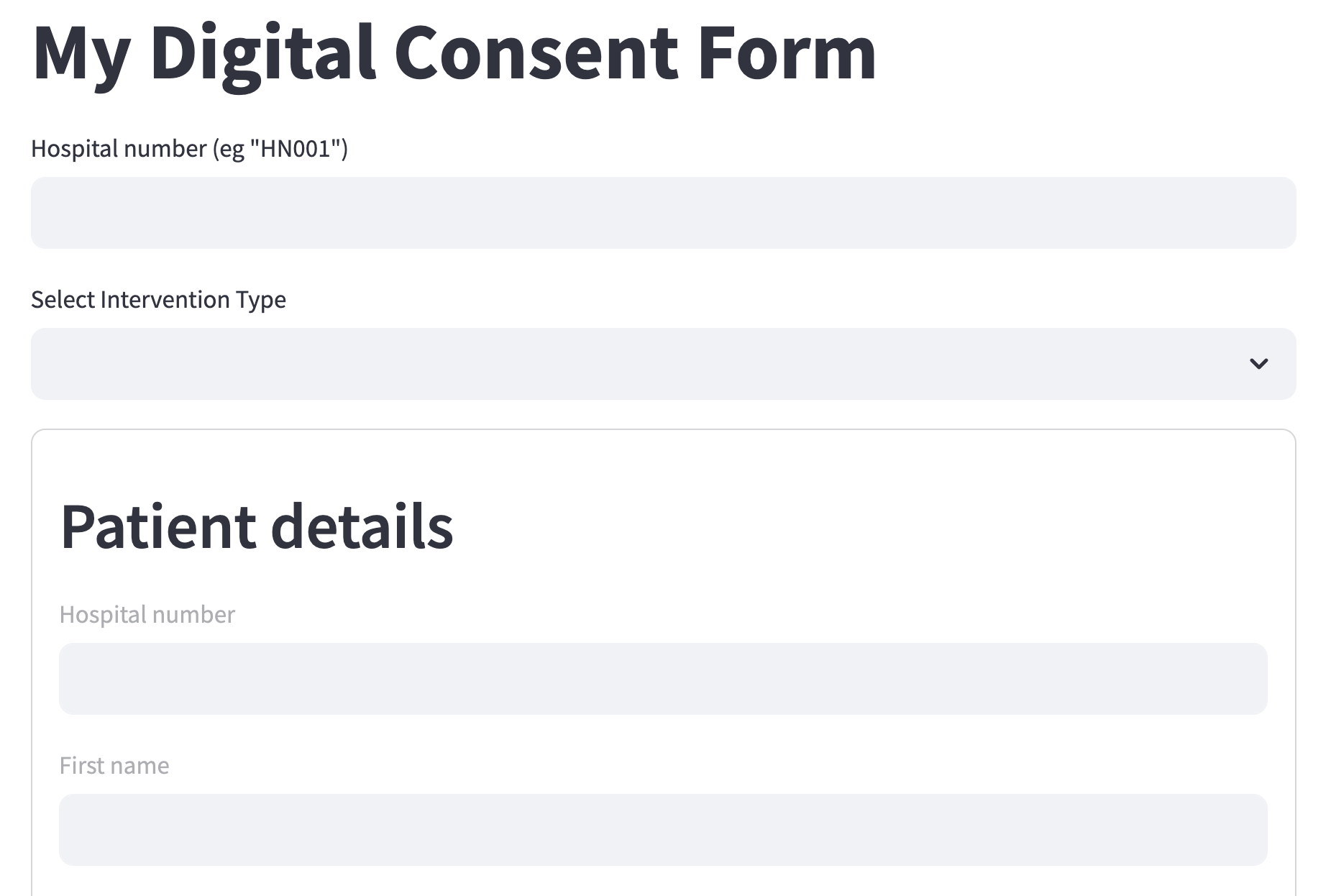

Nuances of streamlit

• Why the text field and selectbox outside of the form (in lesson 2)?

Nuances of streamlit

• Because Streamlit does not allow for dynamic update of fields within forms before submitting.

Supabase

Connection

• How to connect to the Supabase database and then query the data.

supabase.py

import streamlit as st
from st_supabase_connection import SupabaseConnection, execute_query

# Starts a connection to the cloud database on Supabase
conn = st.connection("supabase", type=SupabaseConnection)

# RETRIEVE data from database
users = execute_query(conn.table("users").select("*"), ttl="10m")

# ADD data to database
test_data = {"test_data": "Some test data"}
update_result = execute_query(
        conn.table("test_upload").insert([test_data], count="None")
    )

Database fields - test_upload

READ AND WRITE ACCESS

• id
• test_data
• created_at

Database fields - consent_types

READ ONLY

• id
• created_at
• type
• full_description
• intended_benefits
• potential_risks

Database fields - patient_demographics

READ ONLY

• id
• created_at
• first_name
• last_name
• hospital_number (HN001 - HN050)
• date_of_birth
• email

Database fields - users

READ ONLY

• id
• created_at
• user_name
• first_name
• last_name

Database fields - submitted consents

READ AND WRITE ACCESS

• id
• created_at
• patient_id
• consent_type_id
• user_id

Now let’s get started

You need to have VS code installed

• We will get you set up on Codespace in your tutor groups.

Formatting

• You may notice strange line dropping in VScode when you save. This is the Black formatter making your code conform to standards.
• Black, as standard, makes code max 88 characters long, where possible.

black_formatting.py

    st.text_input(
        'Hospital number (eg "HN001")',
        key="hospital_number_input",
        on_change=on_change_hospital_number(patients, hospital_numbers),
    )

Finding your way

• Click inside your terminal window.
• Go to:

$ cd programming_in_healthcare/module_2/

Secrets

• To use the Supabase cloud database, you need a URL (Uniform Resource Locator), eg website address and a secret key.
• This will then give you access to the the Supabase via its API.
• You will find the url and key in the HackMD file (shared during the module 2 session).

Secrets

• Create a copy of the .streamlit/secrets_example.toml file and rename it .streamlit/secrets.toml.
• Add the URL and API key from HackMD to this new file.

And then run

• And then run:

$ streamlit run exercise_1.py

This will run

lesson_2.py

def main():
    st.title("Hello")
    st.text("Hello World!")

    return


if __name__ == "__main__":
    main()

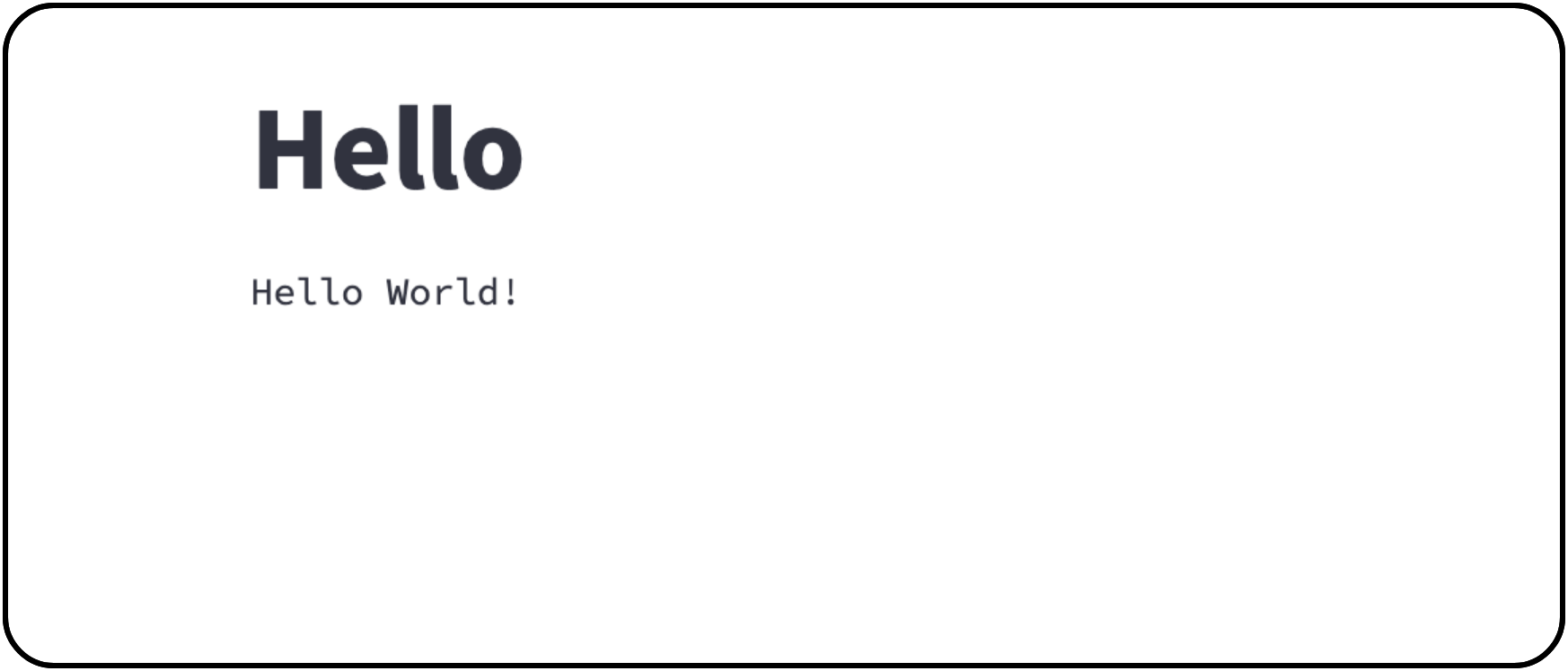

And…

Start the browser

• There will likely be a pop up window to start the browser.
• If not, press CTRL / CMD and click on one of the new url addresses in the terminal.

Follow the exercises.

• Now follow the instructions in the exercises, starting at exercise 1.

Altering the command to run

• Use the ← and → arrows to move the cursor on the terminal line (the mouse does not allow you to move the cursor). Then make any corrections with backspace and keystrokes as needed.
• For example to change

$ streamlit run exercise_1.py

to

$ streamlit run exercise_2.py

Warning!

• You are building an educational program. This is NOT to be used with real patients!

Have the slides on hand

• Make sure you have the slides on hand - https://letsdodigital.org/learn/learn-python/module-2/
• You will need them as you build your digital consent form.
• We recommend doing small changes to your code, saving your work, and then checking to see what happens in the browser.

Ask

• Please please please ask questions of your tutor. That is why they are here.

There is no such thing as a stupid question, only a question left unanswered

Now go!

• Go join your breakout rooms again.
• You may find it frustrating when code does not work straight away. However this is how you learn. We have tried to make the exercises easy to follow and have provided you with great tutors to help you forwards.
• Getting errors? Try writing code in different ways to see if you can get it to work.
• Look up material in the slides.
• Worse case scenario, look at the answers, which are basically in the following exercise (but keep this cheat to last).

See the final product

• Have a look at what the final product looks like by running the below.

$ streamlit run exercise_0.py

• Once you are happy with how the final product looks and works, you can move on to actually building it with exercise 1.

$ streamlit run exercise_1.py

Pit stop
